Episcopal Church of the Redeemer


Kenmore, Washington
1998

Rebuild of Balcom & Vaughan, 1965
II / 22 stops • 28 ranks

New Bond console added, 2014

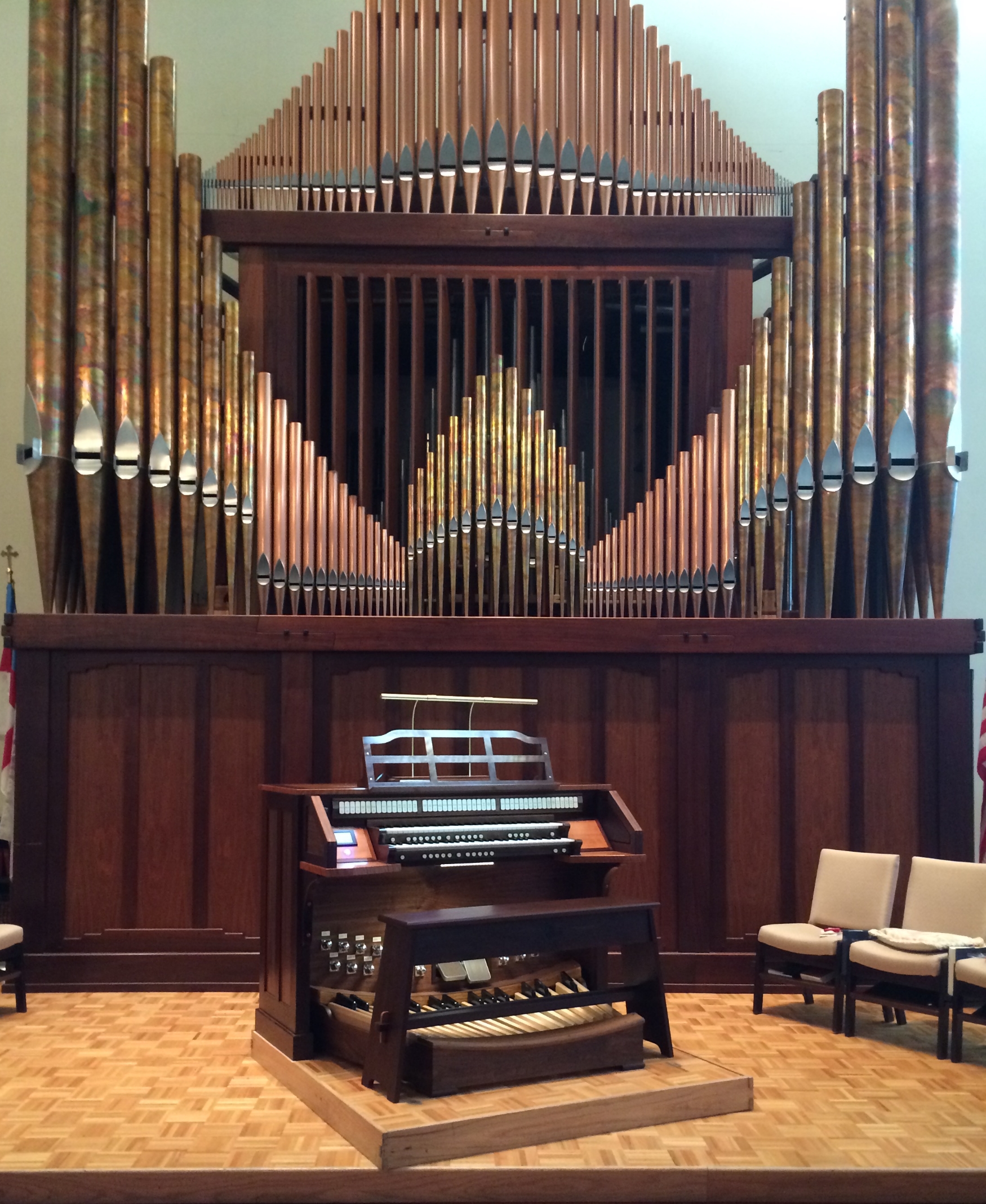

Bond Organ Builders has recently completed and installed a new console for the Church of the Redeemer in Kenmore, Washington. The church requested a low profile, two manual console to complement the organ casework previously made by Bond in during our rebuild of the organ in 1998. The case had been constructed of Peruvian walnut with panels of domestic black walnut. The console was designed and built by Master Craftsman John Stump.

  Detail of the console key desk, incorporating the Madrone wood

Detail of the console key desk, incorporating the Madrone wood

The console’s joinery and details in its case were inspired by the work of the Craftsman architects Greene and Greene. It was built of dark Peruvian walnut with contrasting highlights in lighter domestic black walnut. Our design also integrated an homage to a beautiful and beloved Madrone tree on the  church’s property which had been cut down. At their request, we were happy to perpetuate this special tree by using some of its beautiful wood in the key desk area and for banding around the console’s top.

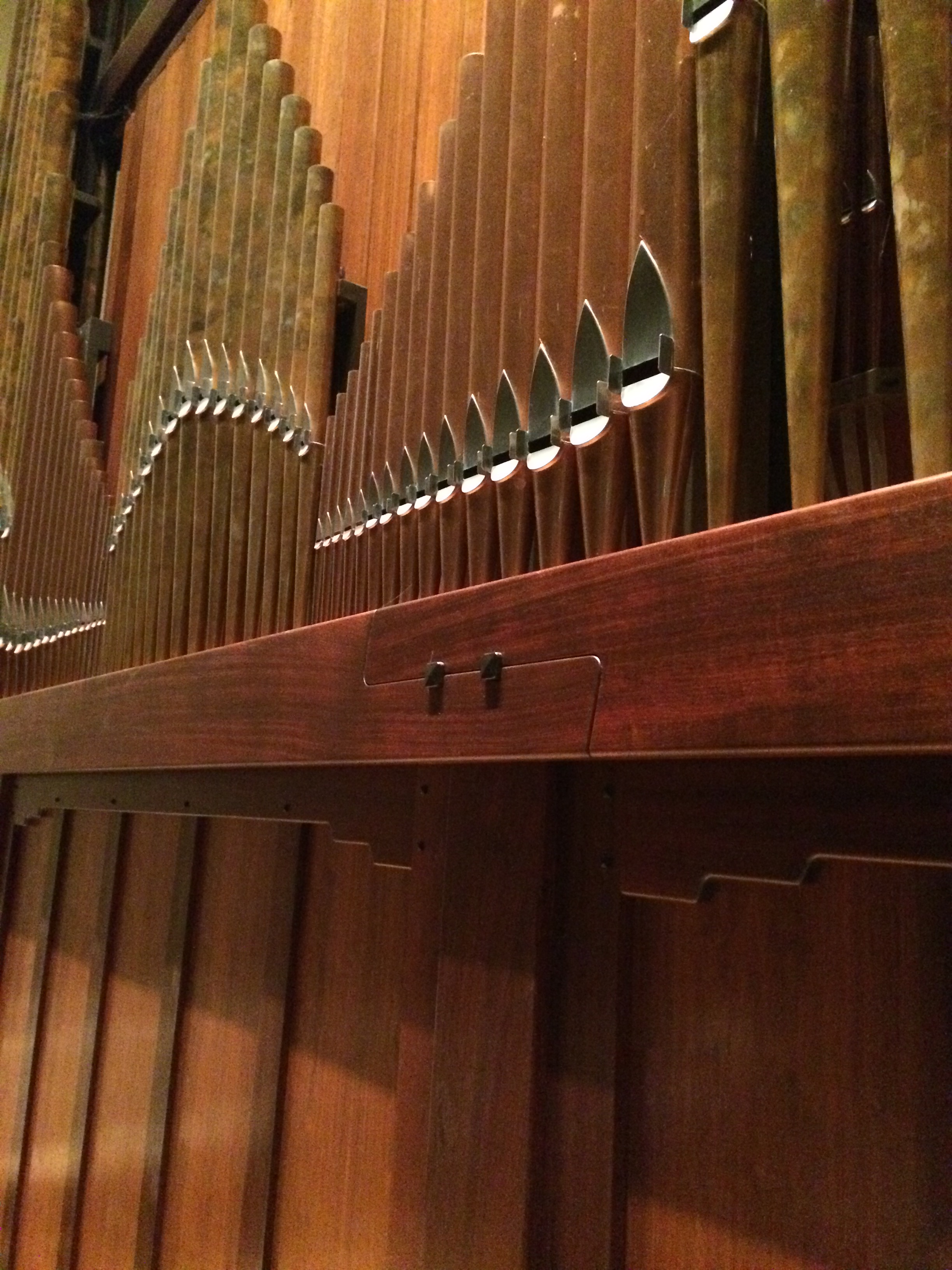

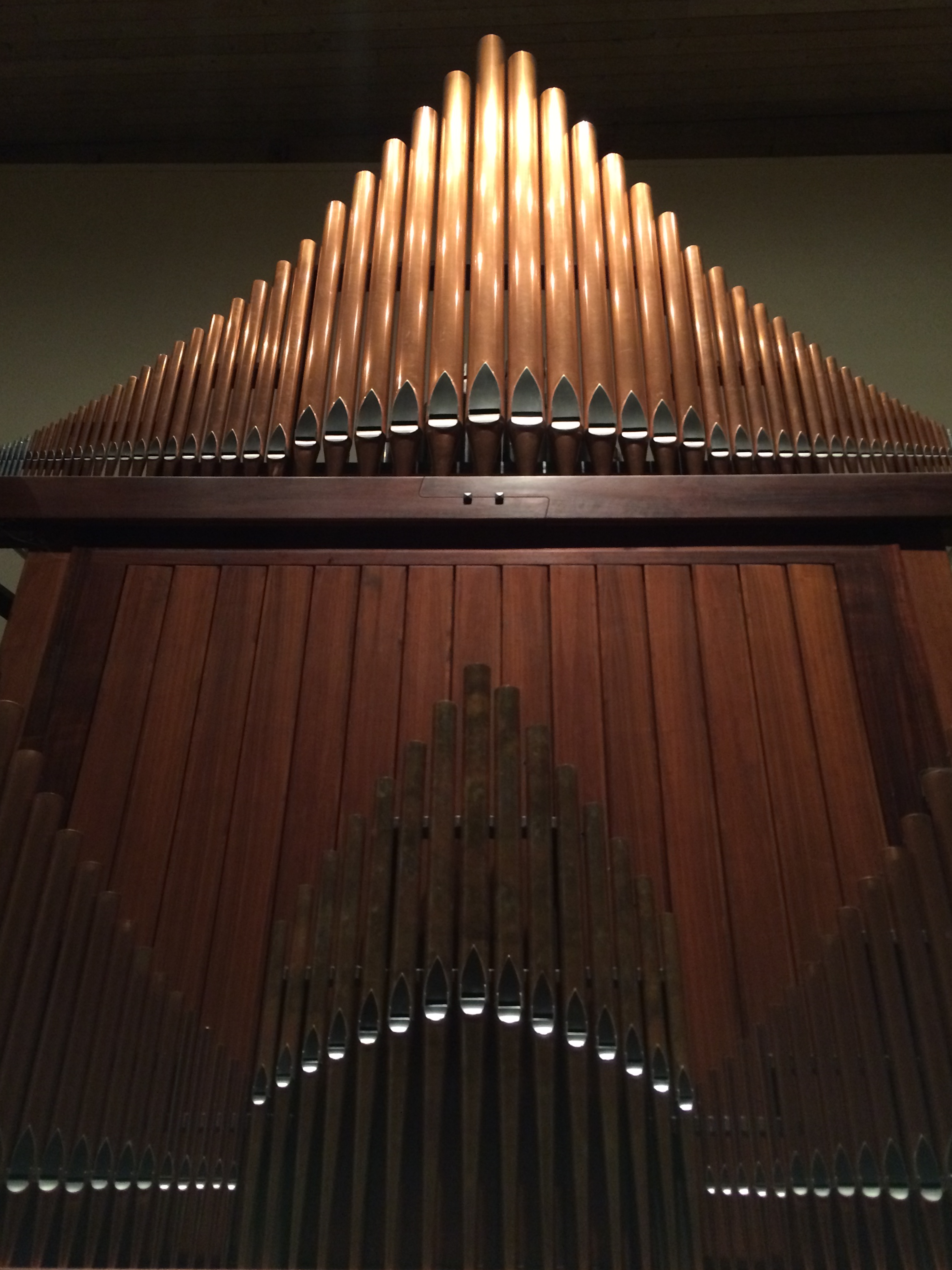

  Detail of the instrument's casework, influenced by the Craftsman architectural style

Detail of the instrument's casework, influenced by the Craftsman architectural style

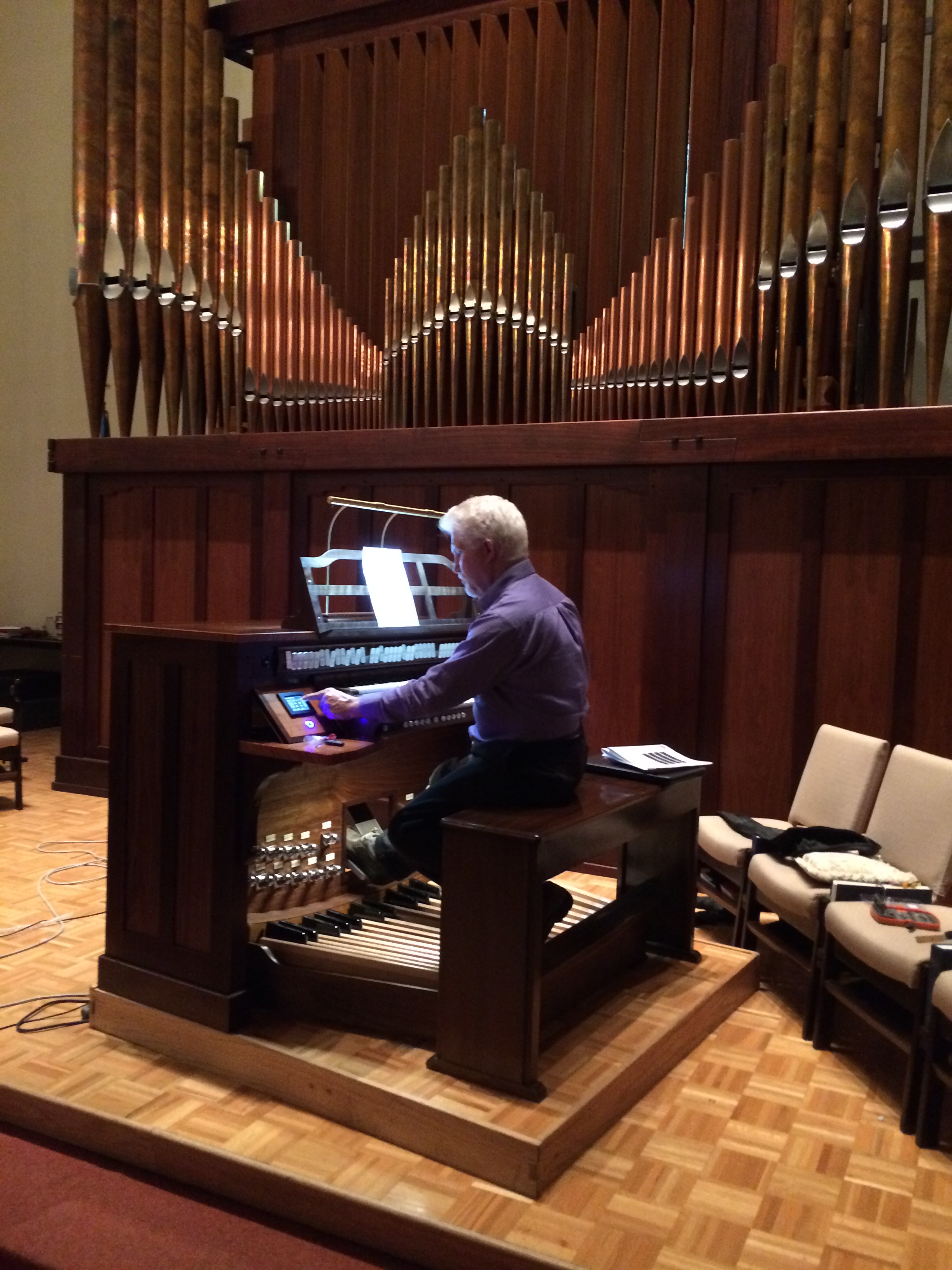

  Service Technician Joe O'Donnell at the new Bond console

Service Technician Joe O'Donnell at the new Bond console



Stoplist

Great

8’ Principal
8’ Rohrflöte
4’ Octave
4’ Spillpfeife
2-2/3’ Nasat
2’ Superoctave
1-3/5’ Terz
Mixture IV
8’ Fagott (Swell)
Great to Great 16
Great Unison Off
Great to Great 4
Swell to Great 16
Swell to Great 8
Swell to Great 4
Zimbelstern, 4 bells

Swell

8’ Gedacktflöte
8’ Spitz Gamba
8’ Schwebung (T.C.)
4’ Weit Principal
4’ Quintade
2’ Gemshorn
Scharf III
16’ Fagott
8’ Trumpet
8’ Fagott (ext.)
8’ Krummhorn
Tremulant
Swell to Swell 16
Swell Unison Off
Swell to Swell 4

Pedal

32’ Resultant (from Subbass)
16’ Principal
16’ Subbass
8’ Octave (ext.)
8’ Gedackt Bass (ext.)
4’ Choral Bass
Mixture II
16’ Fagott (Swell)
8’ Fagott (Swell)
4’ Fagott (Swell)

Couplers

Great to Pedal 8
Great to Pedal 4
Swell to Pedal 8
Swell to Pedal 4
